What You Need for First-Year Engineering Drawing: The Complete Kit Checklist

Starting First-Year Engineering? Here's Every Drawing Tool You Actually Need

If you're about to start your first year of engineering, architecture, or engineering graphics and design (EGD), one of the first things you'll be told is to get your technical drawing kit. But the lists handed out at registration are often vague, and the campus bookshop queues are long. This guide breaks down exactly what you need, what each item does, and how to avoid overpaying.

Why Your Drawing Kit Matters

Manual technical drawing is still a core part of first-year engineering across South African universities and TVET colleges. Your marks depend on clean, accurate lines, correct angles, and neat lettering — which is almost impossible with the wrong tools. A proper kit lasts the whole year and often beyond, so it's worth getting it right the first time.

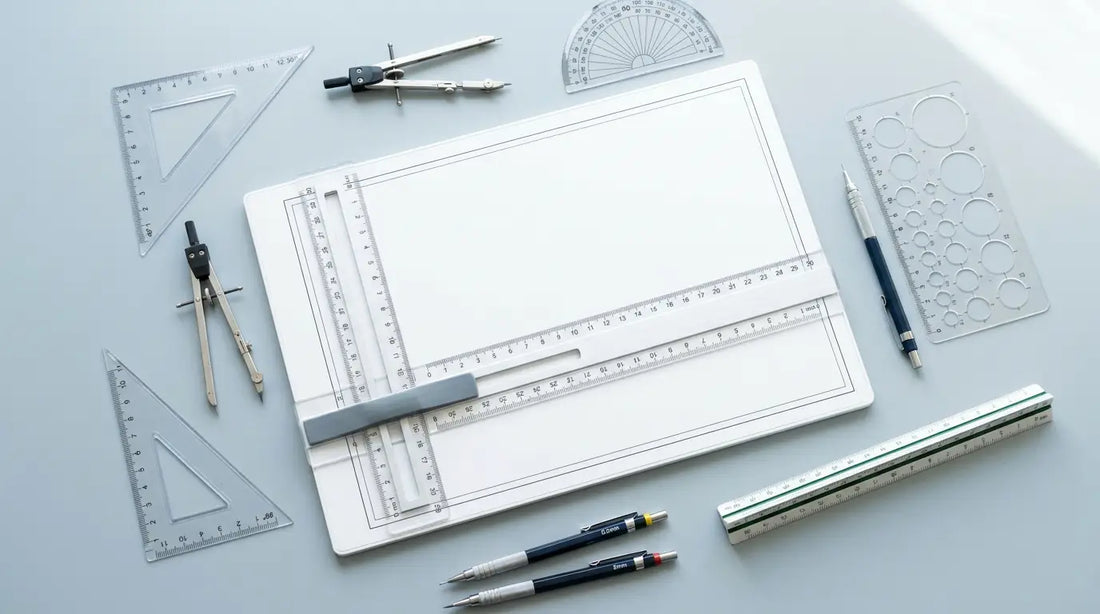

The Complete First-Year Drawing Kit Checklist

Here's everything a first-year student typically needs:

• A3 drawing board — the foundation of your kit, with a sliding ruler mechanism for parallel lines. Choose between a single-lock or double-lock board (more on that below).
• Set squares (45° and 30/60°) — for accurate angles and perpendicular lines.
• Protractor — for measuring and marking angles precisely.
• Drawing compass — for circles and arcs; a precision compass with an adjustment wheel gives cleaner results.
• Triangular scale ruler — for working accurately at different scales.
• Circle and shape templates — circle templates, hexagon/nut stencils and french curves speed up repetitive shapes.
• Clutch pencil and 0.5mm leads (HB and 2B) — for crisp, consistent line work.
• Eraser and erasing shield — to make clean corrections without smudging the rest of your drawing.
• Masking tape — to hold your sheet flat and square on the board.
• Scientific calculator — a Casio FX-991ZA Plus is the standard exam-approved choice.
• A carry bag — to protect your board and tools between home and campus.

Single-Lock vs Double-Lock Drawing Board: Which Should You Buy?

The main difference is how the ruler mechanism is secured. A single-lock board is lighter and more affordable — perfect for most first-years. A double-lock board holds the ruler more firmly, which some students prefer for extra stability on detailed drawings. Both do the same job; it comes down to budget and preference.

Save Money: Buy the Kit as a Bundle

Buying each item separately adds up fast — and it's easy to forget something and end up making multiple trips. A full set bundle gives you everything above in one box, usually with a free carry bag included, at a lower price than buying piece by piece. See our Single Lock Full Set or browse the full range.

Tips for First-Years

• Get your kit before week one. You'll need it from your first drawing class — don't wait until you've fallen behind.
• Look after your board. Keep it in a bag; a warped or scratched board ruins your lines.
• Buy quality leads. Cheap leads snap and smudge — good 0.5mm leads make a real difference.
