How to Fix the "Cannot Solve at (or Near) This Point" Error in Autodesk Inventor

How to Fix the "Cannot Solve at (or Near) This Point" Error in Autodesk Inventor

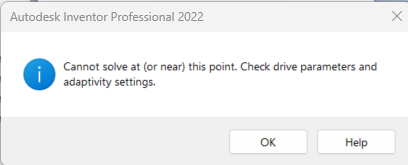

If you’ve encountered the frustrating "Cannot solve at (or near) this point. Check drive parameters and adaptivity settings" error while working in Autodesk Inventor, don’t worry, you’re not alone! This blog will guide you through understanding and resolving this issue effectively.

Understanding the Error

This error often occurs when Autodesk Inventor faces difficulties solving constraints or motion due to conflicting parameters. It can happen when:

  1. Incorrect drive parameters are used.
  2. Components have over-constrained or conflicting constraints.
  3. Adaptivity settings or interdependent features cause unexpected behavior.
  4. Joints or constraints are trying to achieve impossible positions.

Steps to Resolve the Error

1. Check Your Drive Parameters
  • Navigate to the Drive Constraint tool in the assembly.
  • Ensure the range and increment values for the drive parameters are realistic.
  • Test with smaller increments or adjust the start and end positions.
2. Analyze Constraints
  • Review all constraints applied to the affected components.
  • Look for:
    • Over-constrained components.
    • Conflicting constraints preventing motion.
  • Modify or delete unnecessary constraints.
3. Investigate Adaptivity Settings
  • Right-click on the affected component in the Model Browser.
  • Check if Adaptivity is enabled. If not required, disable it to stabilize the behavior.
  • Avoid excessive dependency between components.
4. Use the Joint Tool
  • If constraints are problematic, replace them with joints for better control.
  • Ensure joints accurately represent the desired motion.
5. Test Individual Movements
  • Drive individual components or subassemblies to isolate the issue.
  • Verify if the error persists when simplified.
6. Reset or Simplify the Assembly
  • Reset drive parameters to defaults.
  • Simplify the assembly by suppressing or removing unnecessary components to test the motion.
7. Check for Errors in Geometry
  • Ensure no overlapping or intersecting parts exist in the initial position.
  • Verify that part geometries are properly constrained and aligned.

Pro Tips for Avoiding Future Errors

  1. Use simplified constraints where possible.
  2. Always test motion incrementally to identify issues early.
  3. Regularly save versions to revert to a working state.
  4. Understand and optimize the use of adaptivity for dynamic components.

Conclusion

The "Cannot solve at (or near) this point" error can be intimidating, but with systematic troubleshooting, you can resolve it and keep your project on track. Follow these steps, and you’ll have your assembly working as intended in no time! If this guide helped you, feel free to share it with others in your engineering network who might encounter similar challenges.
